2000-01: Much can be learned about Frame document structure and the objects within by examining documents saved in MIF format.  To browse MIFs more easily I wrote this little application.

2003-09 Update: Little did I realize that I and others would still find this useful after all this time. A couple of modest features have been added, see the download table below.

Overview

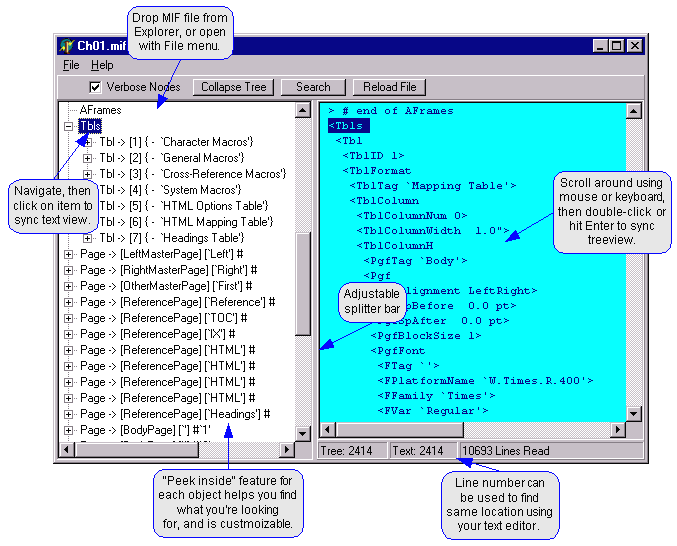

The above screenshot pretty much says most of what there is to know.  You load in a MIF file, and MIFBrowser presents it in both tree and text forms. While navigating in either you may sync the other view.

Possible Uses

Several kinds of uses come to mind:

• When writing code to generate MIFs:
  • You can use MIFBrowse to inspect existing FrameMaker documents to see how the MIF structure represents particular effects of interest.
  • You can use MIFBrowse to inspect the output of your programs.  MIFBrowse won't guarantee a valid MIF (it knows a bare minimum about syntax and nothing about legit keywords), but it will allow you to catch obvious bracket nesting problems, and to check that what you thought your program was generating is what is actually generated.

• When troubleshooting FrameMaker document problems, like searching for references to missing paragraph or table styles, and oddball structural problems.

• Instruction.  When teaching FrameMaker users how to think about FrameMaker documents, it can be useful to tour the underlying structure that's exposed via MIF files.

Download, Version History and Issues

Installation

1. Create a directory somewhere for it, put the zip file there and unzip. Choose a directory to which the application will be able to write (it keeps track of things like window size and position in an INI file in its home directory).

2. OK, it's now installed :-). No special installation is required, it is a single executable and doesn't use the registry so it's easily uninstalled by just deleting it.

3. Run it by clicking on MIFBrowse.exe  in Windows Explorer. If you are enthusiastic you can later create a shortcut and or Start Menu item for it using the usual Windows methods.

I suggest trying it on a smallish MIF first, to get the hang of it. Depending on the speed and memory capacity of your PC, it could slow down on larger MIFs.

Special Features

Verbose Nodes/"Peek Inside"

The only feature of significant unobviousness is the "Peek Inside" feature which adds some identifying information to many of the treenodes in order for you to see whether this is the object you want to open. In the screenshot above you can see that each Tbl and Page node surfaces things like the table caption or page type and name.  This way you don't have to open each node to see what's inside.  This is probably the most important feature in making a MIF more navigatable.

The particulars of which attributes are surfaced is controlled by a file called MIFBrowse_NodeInfo.ini. The default file included in the download includes comments and examples which you can modify if you wish.

You can turn off the display of this extra info using the Verbose Nodes checkbox, in which case the treenodes become much more similar to the MIF text.

No nodes are added or removed via the Peek Inside feature, it merely displays extra info for particular nodes.

Reload

In some scenarios, you'll be wanting to inspect the contents of a particular MIF file over and over again, as you perhaps generate new versions of that file with a program you are developing, or make incremental changes in FrameMaker.  To quickly load the same file into MIFBrowse, click the Reload button.

Browse Several Files

Although MIFBrowse can only open one file at a time, you can run several instances of MIFBrowse to achieve pretty much the same effect. Note that when quitting, MIFBrowse saves a few settings in MIFBrowse.ini.  That file will reflect whichever instance of MIFBrowse last quit.

Range-of-Lines

Added in Version 0.181: The status bar shows the range of lines that correspond to the node selected in the tree view. Useful scenario: with most nodes closed, select high level nodes, and by watching the line-range indicator you can tell which nodes contain a large amount of content.

Future

As of 2009, I haven't used FrameMaker in five years... so this tool is really just here in case anyone can still make use of it.

Developer Notes

Written in Borland Delphi 5 (and recompiled in 6), with several fruits of the global developer community which supports this environment:

• TPlusMemo from ECM (Quebec, Canada)
• Drag and Drop Suite from Angus Johnson and Anders Melander (An Australia/Denmark collaboration with some assistance from my Delphi Drag and Drop tools). (Now included in Delphi, or search Torry's for latest..
• TDCTree (Dream InfoTree) from Dream Company, a tree control not based on MS's TreeView, and hugely faster for a number of operations. (Ukraine).
